HCL Domino V11 – Directory Synchronzation – Part 5

Debugging & Monitoring

To monitor DirSync output, you can use the server console or the server log.nsf.
This in general lets you identify possible errors during DirSync processing.

If you need a more verbose output, or you want to dig deeper into DirSync functionallity, use the following notes.ini variable to create some kind of trace mode.

set con DIRSYNC_DEFAULT_ARGS=-v

You do not need to restart the DirSync task to switch verbose logging on / off.

Instead of just the summary line

[1730:0004-0BE0] 20.01.2020 12:13:56   DIRSYNC From Active Directory (AD) - Summary (0.003 sec, Start=234796, Adds=0, Modifies=0, Deletes=0, Skips=0, Errors=0, End=234795)

by setting the parameter, you will get a more verbose output.

[1730:0004-0BE0] DirSync  ResyncAll by CheckBox: 0
[1730:0004-0BE0] DirSync  Preview:        0
[1730:0004-0BE0] DirSync  Level:          16
[1730:0004-0BE0] DirSync  SyncFlows:      2
[1730:0004-0BE0] DirSync  OnPremCookie:
[1730:0004-0BE0] DirSync  UserDirCookie:  234795
[1730:0004-0BE0] DirSync  CSyncFromAD::SyncSpan (NAMEldap_search_ext_s call) : (&(&(|(objectClass=Group)(objectClass=Person))(|(mail=@brightside.)(mail=@darkside.)(mail=@msdn.)))(uSNChanged>=234796)) took 1 msec
[1730:0004-0BE0] 20.01.2020 12:14:47   DIRSYNC From Active Directory (AD) - Summary (0.001 sec, Start=234796, Adds=0, Modifies=0, Deletes=0, Skips=0, Errors=0, End=234795)

With this parameter in place, you will also be able to monitor which attributes have been changed in Active Directory.

[1428:0005-17F8] DirSync  Processing ldap entry (SyncSpan) #1 from page #1, total entries #1: 'CN=James Kirk,CN=Sync,DC=ad,DC=fritz,DC=box'
[1428:0005-17F8] DirSync  Entry with mail address 'j.kirk@brightside.org' - NoteID 10082 was found in the target directory.
[1428:0005-17F8] DirSync
 DirSync  CSyncFromAD::DoModify(dn = 'CN=James Kirk,CN=Sync,DC=ad,DC=fritz,DC=box', newentry=0)
[1428:0005-17F8] DirSync  Modified MiddleInitial from '' to 'T'
[1428:0005-17F8] DirSync  Modified uSNChanged from '234775' to '234796'
[1428:0005-17F8] DirSync  'person' Document updated, UTF8 Name = 'CN=James Kirk,CN=Sync,DC=ad,DC=fritz,DC=box'
[1428:0005-17F8] DirSync  CSyncFromAD::DoModify - Modified existing Note for 'CN=James Kirk,CN=Sync,DC=ad,DC=fritz,DC=box'
[1428:0005-17F8] DirSync
[1428:0005-17F8] 20.01.2020 12:19:37   DIRSYNC From Active Directory (AD) - Summary (0.037 sec, Start=234796, Adds=0, Modifies=1, Deletes=0, Skips=0, Errors=0, End=234796)

The above output also indicates a possible bug in the DirSync task setting values on the Status tab of the configuration document.

While the LDAP change number corresponds to the End=234796 value in the summary record, the Last sync time (20.01.2020 12:19:37) entry is not updated.

Not sure, at what time this value is being set. I will keep an eye on it.

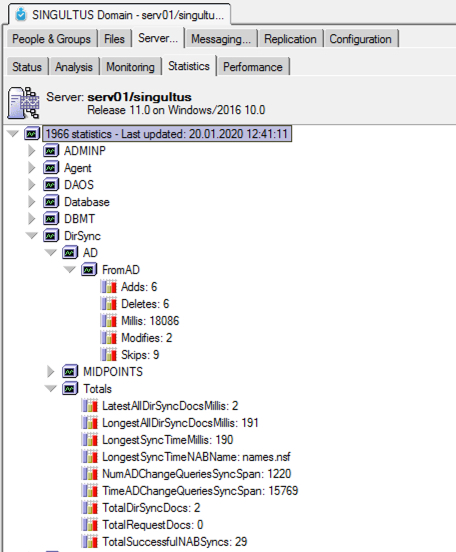

DirSync also collects several stats. You can access them either from the Admin Client.

or issuing a show stat DirSync command on the server console

show stat dirsync
[1CDC:0009-1EC8]   DirSync.AD.FromAD.Adds = 6
[1CDC:0009-1EC8]   DirSync.AD.FromAD.Deletes = 6
[1CDC:0009-1EC8]   DirSync.AD.FromAD.Millis = 18086
[1CDC:0009-1EC8]   DirSync.AD.FromAD.Modifies = 2
[1CDC:0009-1EC8]   DirSync.AD.FromAD.Skips = 9
[1CDC:0009-1EC8]   DirSync.MIDPOINTS.FromAD.Millis = 108
[1CDC:0009-1EC8]   DirSync.Totals.LatestAllDirSyncDocsMillis = 3
[1CDC:0009-1EC8]   DirSync.Totals.LongestAllDirSyncDocsMillis = 191
[1CDC:0009-1EC8]   DirSync.Totals.LongestSyncTimeMillis = 190
[1CDC:0009-1EC8]   DirSync.Totals.LongestSyncTimeNABName = names.nsf
[1CDC:0009-1EC8]   DirSync.Totals.NumADChangeQueriesSyncSpan = 1221
[1CDC:0009-1EC8]   DirSync.Totals.TimeADChangeQueriesSyncSpan = 15769
[1CDC:0009-1EC8]   DirSync.Totals.TotalDirSyncDocs = 2
[1CDC:0009-1EC8]   DirSync.Totals.TotalRequestDocs = 0
[1CDC:0009-1EC8]   DirSync.Totals.TotalSuccessfulNABSyncs = 30
[1CDC:0009-1EC8]   15 statistics found

In addition to the notes.ini parameter mentioned above, DirSync comes with a lot more notes.ini parameters. They are not documented and should only be used when support advices you to do so.

You can find a list of those parameters using the following command on the server console.

te dirsync show
[1730:0004-0BE0] DirSync> DIRSYNC_DEFAULT_ARGS=-v
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_STRICT_ASSERT=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_THREAD_TRACE_LEVEL=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_DISABLE_BG_THREADS=0
[1730:0004-0BE0] DirSync> DIRSYNC_THREADS=10
[1730:0004-0BE0] DirSync> DIRSYNC_BG_THREADS=10
[1730:0004-0BE0] DirSync> DIRSYNC_BG_THREADS_CUSTOMER_ALLOWED=3
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_STARTUP_DELAY=60000
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_STARTUP_THREAD_ABORT=10
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_DELAY=60000
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_FORCE_RUNMODE=1
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_REPLICATE=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_YELLOWZONE=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_MARK_INVALID_INTERVAL_MINUTES=60
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_CHANGELOG_TIMELIMIT=300
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_CHANGELOG_SIZELIMIT=10000
[1730:0004-0BE0] DirSync> DEBUG_IDRSYNC_CHANGELOG_CHANGETIME_LIMIT=10000
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_SKIPLOG_LIMIT=50
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_SERVERROLE_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_REPLICATION_SERVER_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_CONFLICT_CLEANUP=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_FIRSTSYNC_OPTIMIZATION=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_ACL_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_ECL_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_MAILHUBS_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_NO_DOMAINNAME_CHECK=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_ELSEWHERE_CHECK_INTERVAL_MINS=60
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_TRIANGULATION_INTERVAL_MINS=10
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_TRACE_NOTESDN=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_RESYNC_ONCE_NOTESDN=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_FLUSH_CONFIG_FREQUENTLY=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_CERTIFIER_BLACKLIST=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_CDIR_UPDATE_VIEWNAMES=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_HYGIENICRESTART_THRESHOLD=100000
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_EXCLUDE_CUSTOMERID=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_EXCLUDE_USERID=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_INCLUDE_ONLY_CUSTOMERID=
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_DISABLE_AUTO_SYNC_ALL=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_LEAKS=0
[1730:0004-0BE0] DirSync> DEBUG_MAX_CHANGELOG_RENAME_SEARCH_ITERATIONS=20
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_DONT_PANIC_ON_MAX_MEM_SEGMENTS=0
[1730:0004-0BE0] DirSync> DEBUG_INVALID_BBLOCK_IN_SYNCTHREAD=0
[1730:0004-0BE0] DirSync> DEBUG_SKIP_INVALID_BBLOCK_IN_SYNCTHREAD=0
[1730:0004-0BE0] DirSync> DEBUG_USE_OLD_RESYNCONCE_PROCESSING=0
[1730:0004-0BE0] DirSync> DEBUG_USE_DIRSYNC_RESPONSE_DOCS=0
[1730:0004-0BE0] DirSync> DEBUG_MULTI_BG_THREADS_TO_A_CUSTOMER=0
[1730:0004-0BE0] DirSync> DEBUG_DIRSYNC_MAX_REQUEST_ERRORS=0

Use / change this parameters only when told by HCL support.
